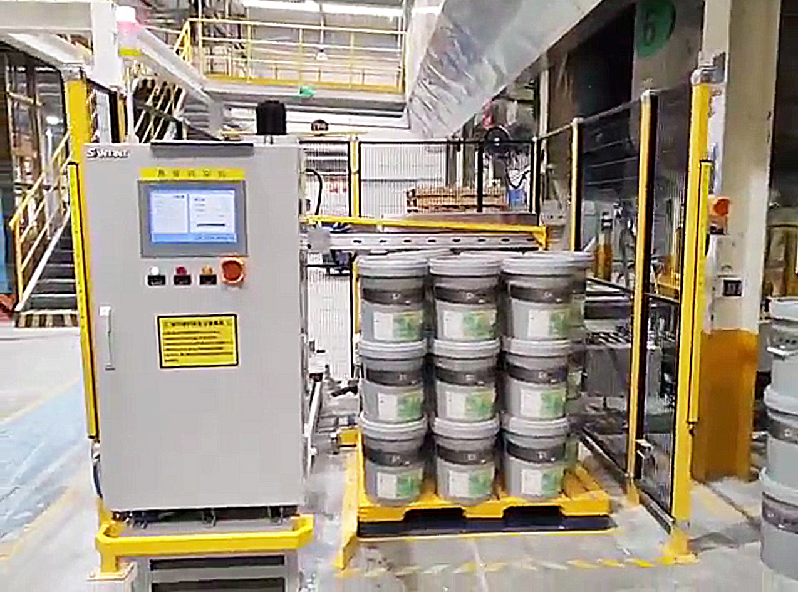

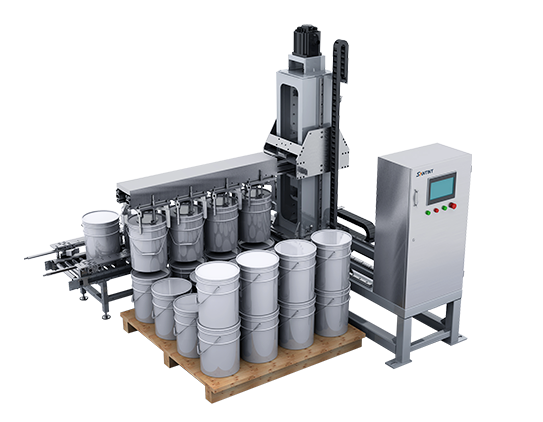

Cantilever Palletizer

Flexible and efficient, fast delivery
Stable and reliable, less labor required
Send Inquiry
Features
parameters
Documents Download
It goes well with
inquiry
Features
01
Smart pail positioning and gripping for efficient palletizing.


02
Programmable control with adjustable settings for pail height, palletizing distance, etc., ideal for a variety of pail sizes.


03
Servo motor driven for high positioning accuracy.


04
Self-controlled palletizing system,no protocol needed, easy to connect.




Parameters
Palletizing Speed 12 pails/min
Conveying Speed 5000mm/min
Air Pressure 0.6 Mpa
Air Consumption 0.5m³/min
Power Supply AC380V±10% 50HZ
Rated Power 4kW
Pallet Dimensions 1000x1200x150mm 1200x1200x150mm (Customizable)
Compatible Pail Size φ300-340mm H300-380mm
