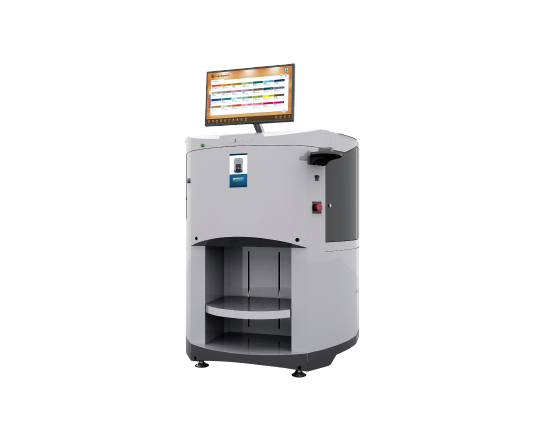

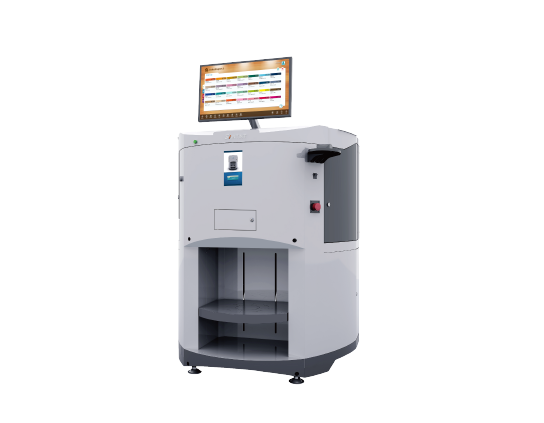

A7

Automatic Dispenser

1L/min High efficiency suitable for batch dispensing
1/2000Y High accuracy suitable for sample paint dispensing
100% Recirculation suitable for Z-VOC colorant

Send Inquiry

Features

parameters

Documents Download

It goes well with

inquiry

Features

Preferred option for medium/high volume tinting

High efficency piston pump shortens tinting time.

Suitable for sample paint dispensing

Small pump and small nozzle inside achieve 1/2000Y(0.015ml) super high accuracy, suitable for sample paint dispensing.

Suitable for Z-VOC colorant

100% recirculation patented technology. In the standby time, the colorant is completely isolated from air; timed recirculation makes the colorant noncondensing and prevents the nozzle from dryness and blockage & colorant from deterioration.

Weight feedback function optional

Electronic scale real-time feedbacks dispensing amount. Accurate compensation can be achieved according to feedback value. It applies to industrial paint, ink, automotive paint, etc.

Parameters

Pump configuration	sequential pistion pump
Single Pump Standard Efficiency:	1L/min
Minimum Shot	1/2000Y(0.015ml)*It depends on the product property
Mixing Speed	20-25r/min
Applicable can:	diameter≤490mm, height≤420mm
NO. of Canisters	16 canisters: 4 x 12L+12 x 6L 24 canisters: 18 x 6L+6 x 2.3L 32 canisters: 8 x 6L+24 x 2.3L 36 canisters: 9 x 6L+27 x 2.3L

Can table	electrical
Machine Dimension ( W X D X H )	1100X1270X1325 mm
Packing Dimension ( W X D X H )	1150×1400×1400 mm
Net Weight	350Kg
Gross Weight	450Kg
Power Supply	220V/110V 50Hz/60Hz

Download Related Documents

A7 Automatic Dispenser

Brochure
