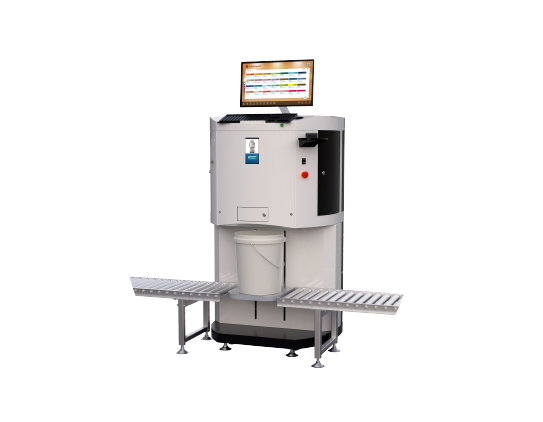

A5-max

Automatic Dispenser

1L/min High efficiency suitable for batch dispensing
1/2000Y High accuracy suitable for sample paint dispensing
Tailored for the Tinting Line

Send Inquiry

Features

parameters

Documents Download

It goes well with

inquiry

Features

Reduces customer waiting time

High efficency piston pump shortens tinting time.

Suitable for sample paint dispensing

Small pump and small nozzle inside achieve 1/2000Y(0.015ml) super high accuracy, suitable for sample paint dispensing.

Suitable for Z-VOC colorant

100% recirculation patented technology. In the standby time, the colorant is completely isolated from air; timed recirculation makes the colorant noncondensing and prevents the nozzle from dryness and blockage & colorant from deterioration.

Tailored for the Tinting Line

Parameters

Pump configuration	sequential pistion pump
Single Pump Standard Efficiency	1L/ min
Minimum Shot	1/2000Y(0.015ml) *It depends on the product property
Mixing Speed	20-25r/min
Canister configuration	16 canisters: 12 x 2.3L + 4 x 6L 24 canisters: 24 x 2.3L(Stainless Steel)

Machine Dimension ( W X D X H )	830 x 985 x 1444mm
Packing Dimension ( W X D X H )	900 x 1070 x 1615mm
Net Weight	230Kg
Gross Weight	290Kg
Power Supply	220V/110V 50Hz/60Hz

Download Related Documents

A5-max Automatic Dispenser

Brochure
