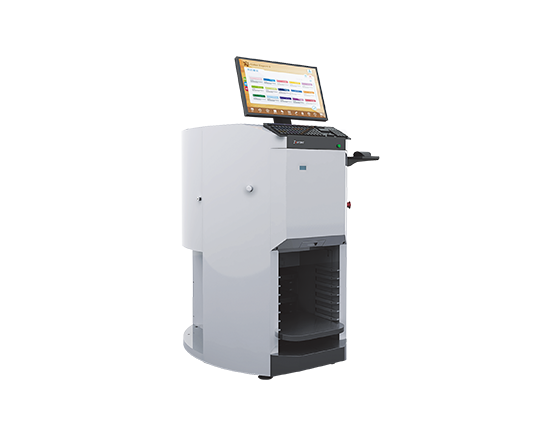

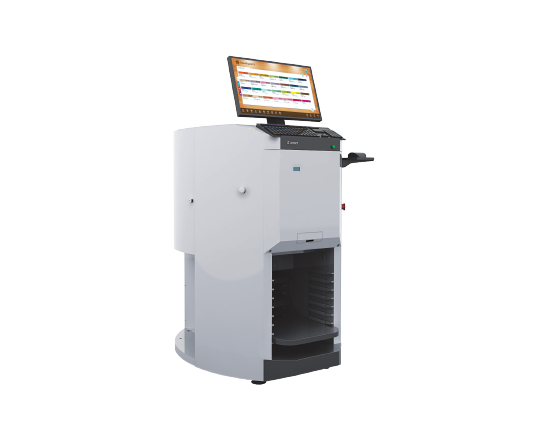

A4b- Hummingbird

Automatic Dispenser

Minimum Shot:1/2000Y
100% Recirculation
Box Tinting (Android)

Send Inquiry

Features

parameters

Documents Download

It goes well with

inquiry

Features

Double Pump Double Nozzle

1/2000Y(0.015ml) Minimum Shot

Suitable for Z-VOC Colorant

100% recirculation technology.Timed recirculation makes the colorant noncondensing and prevents the nozzle from dryness and blockage & colorant from deterioration

Box/Table Tinting

Saving PC cost; pre-installed software, shorter installation time.

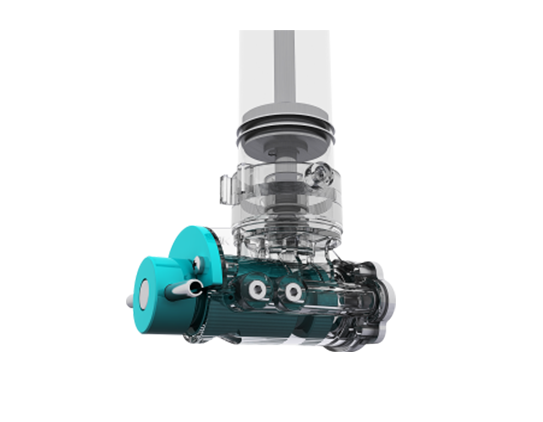

Calibration-free Piston Pump

Parameters

Single Pump Standard Efficiency	300ml/min*It depends on the product property
Minimum Shot	1/2000Y(0.015ml)*It depends on the product property
Pump Capacity	100ml
Stirring Speed	20rpm
Canister Size	1.35L / 1.8L / 2.3L / 6L POM 2.3L / 3.8L Stainless Steel ( Optional )
NO. of Canisters	Up to 32
Optional	Electrical Can Table/Automatic Puncher

Max Can Size ( D X H )	Manual 360X460mm Electrical 390X440mm
Machine Dimension ( W X D X H )	870X1026X1290mm
Packing Dimension ( W X D X H )	920X1170 X1500mm
Loading Quantity	12 Pieces/20GP
Net Weight	Electrical 245Kg , Manual 215Kg
Gross Weight	Electrical 290Kg, Manual 260Kg
Rated Power	200W
Power Supply	220V/110V 50Hz/60Hz

Download Related Documents

A4b Hummingbird Automatic Dispenser

Brochure

It Goes Well With

Automatic Shaker

GH360

Automatic Gyroscopic Mixer
