A4b-100%

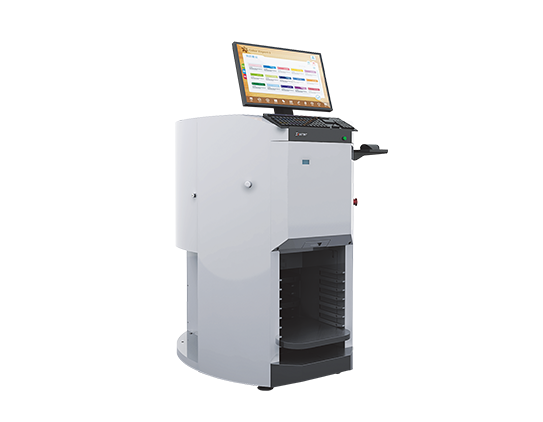

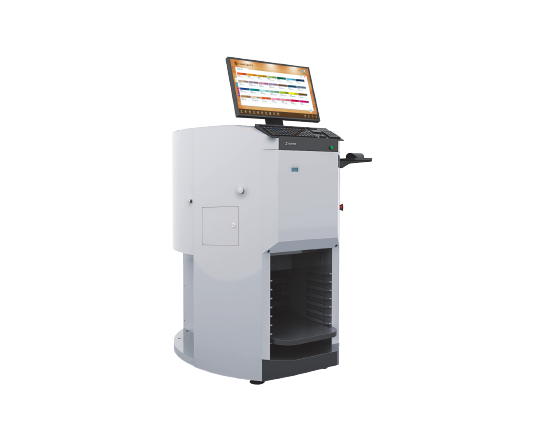

Automatic Dispenser
Efficency Improved by 50%
100% Recirculation
Box Tinting
Features
parameters
Documents Download
It goes well with
inquiry
Features
01
100% Recirculation
Zero nozzle dryness/blockage; purge-free; maintenance-free; colorant saving; stable accuracy.
02
Box Tinting
Saving PC cost; pre-installed software, shorter installation time.
03
High Accuracy
Minimum Shot 1/768Y(0.039ml)
04

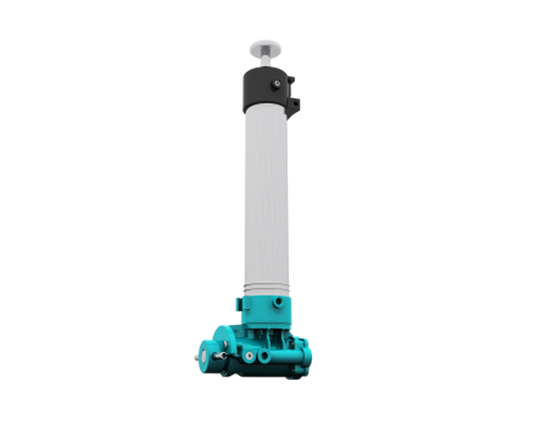

Calibration-free Piston Pump


Parameters
Flow Rate 900ml/min
Efficiency 300ml/min
Minimum Shot 1/768Y(0.039ml)
Pump Capacity 100ml
Stirring Speed 20rpm
Canister Size 1.35L / 1.8L / 2.3L / 6L POM
2.3L / 3.8L Stainless Steel ( Optional )
NO. of Canisters Up to 32
Loading Quantity 12 Pieces/20"Container
Max Can Size ( D X H ) Manual 360X460mm
Electrical 390X440mm
Machine Dimension ( W X D X H ) 870X1026X1290mm
Packing Dimension ( W X D X H ) 920X 1170X1500mm
Net Weight Electrical 245Kg, Manual 215kg
Gross Weight Electrical 290Kg, Manual 260Kg
Power ≤ 150W
Power Supply 220V/110V 50Hz/60Hz
