A3

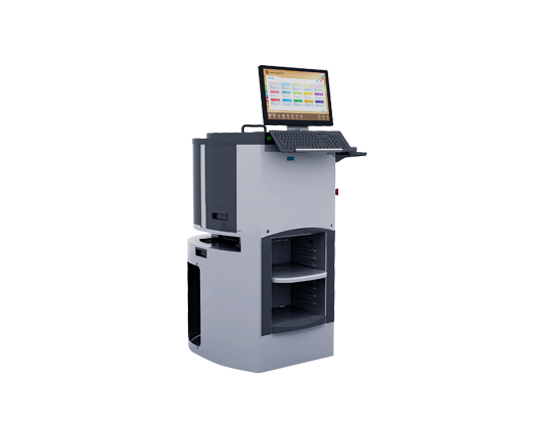

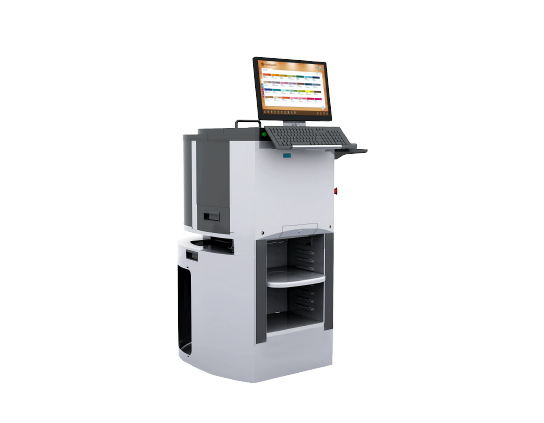

Automatic Dispenser
High Efficiency
High Accuracy
Purge Free
Freight Reduced 60%
Features
parameters
Documents Download
It goes well with
inquiry
Features
01
100% Recirculation
Zero nozzle dryness/blockage; purge-free; maintenance-free; colorant saving; stable accuracy.
02
High Efficency
Efficency up to 300 ml/min
03
High Accuracy
Minimum Shot 1/384Y(0.077ml)
04

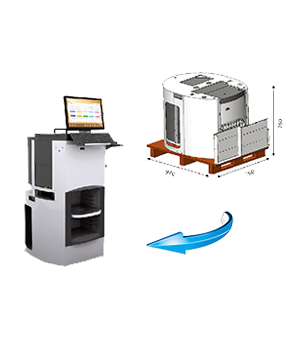

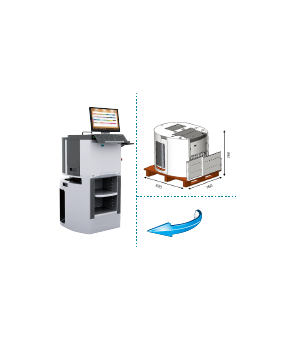

Freight Reduced 60%
3 layers in container


Parameters
Flow Rate 900ml/min
Efficiency 300ml/min
Minimum Shot 1/384Y(0.077ml)

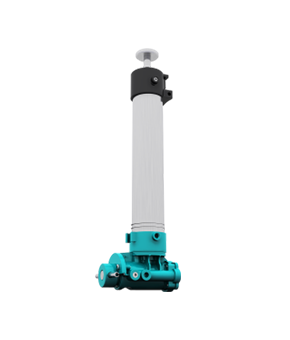

Pump Capacity 100ml
Stirring Speed 20rpm
Canister Volume 2.3L
NO. of Canisters Up to 16
Can Size ( D H ) 320mmX420mm(Max)
Machine Dimension ( W X D X H ) 720X895X1220mm
Packing Dimension ( W X D X H ) 970X760X760mm
Loading Quantity 48 units/2‘0 GP
Net Weight 120Kg
Gross Weight 145Kg
Power ≤ 100W
Power Supply 220V/110V 50Hz/60Hz




Download Related Documents
It Goes Well With
Automatic Shaker
S5
Automatic Shaker
Automatic Gyroscopic Mixer
GH360
Automatic Gyroscopic Mixer
