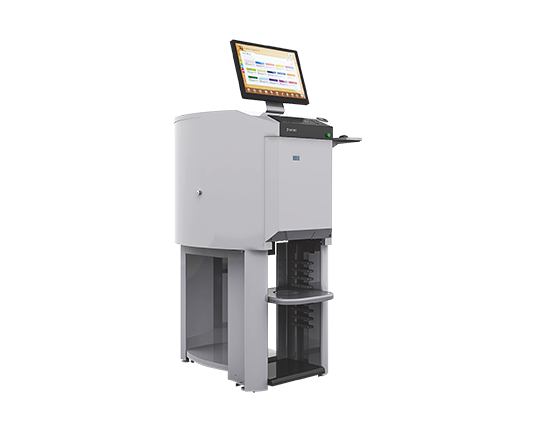

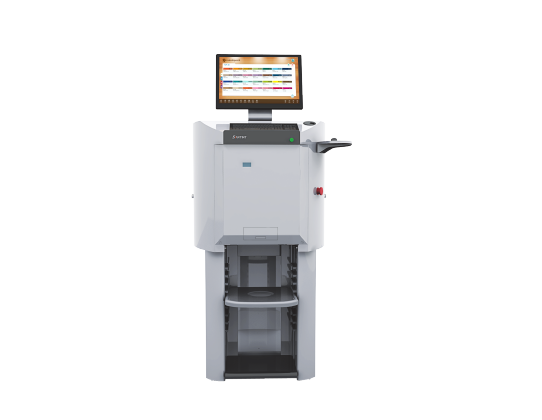

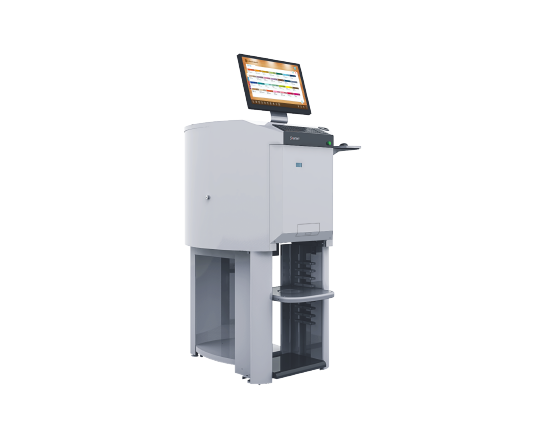

A2-Hummingbird

Automatic Dispenser

Minimum Shot:1/2000Y
100% Recirculation
Suitable for Sample Paint Dispensing

Send Inquiry

Features

parameters

Documents Download

It goes well with

inquiry

Features

Double Pump Double Nozzle

1/2000Y(0.015ml) Minimum Shot

100% Recirculation

100% recirculation technology. Timed recirculation makes the colorant noncondensing and prevents the nozzle from dryness and blockage & colorant from deterioration.

Box/Table Tinting

Saving PC cast; pre-installed software, shorter installation time.

Calibration-free Piston Pump

Parameters

Single Pump Standard Efficiency	200ml/min*It depends on the product property
Minimum Shot	1/2000Y(0.015ml)*It depends on the product property
Pump Capacity	60ml
Stirring Speed	20rpm
Canister Size	1.8L/2.3L POM 2.3L/3.8L Stainless Steel (Optional)
No. of Canisters	Up to 16

Max Can Size ( D X H )	320mmX600mm
Machine Dimension ( W X D X H )	707X848X1300mm
Packing Dimension ( W X D X H )	830X990X1500mm
Loading Capacity	14 Pieces/20GP
Net Weight	130kg
Gross Weight	155kg
Rated Power	100W
Power Supply	220V/110V 50Hz/60Hz

Download Related Documents

A2-Hummingbird Automatic Dispenser

Brochure
