A2-100%

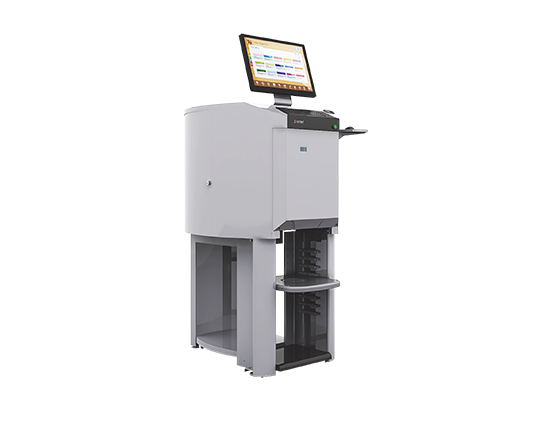

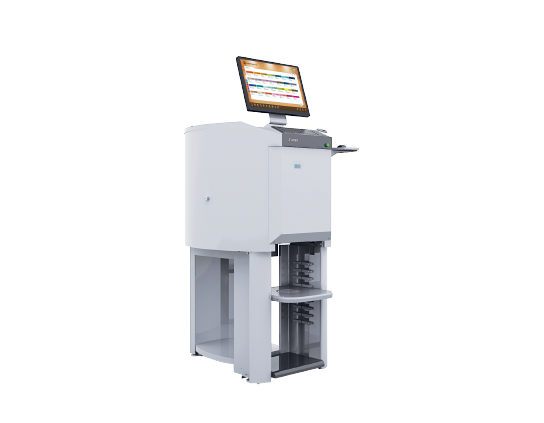

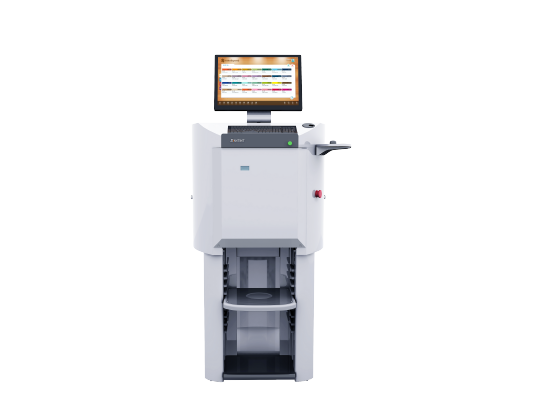

Automatic Dispenser

100% Recirculation
Box Tinting(Android)

Send Inquiry

Features

parameters

Documents Download

It goes well with

inquiry

Features

Suitable for Z-VOC Colorant

100% recirculation technology.Timed recirculation makes the colorant noncondensing and prevents the nozzle from dryness and blockage & colorant from deterioration

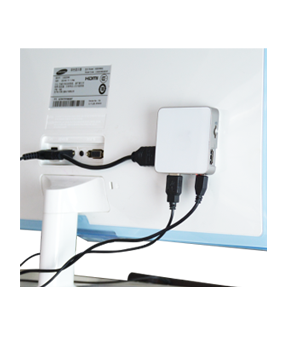

Box/Table Tinting

Saving PC cost; pre-installed software, shorter installation time.

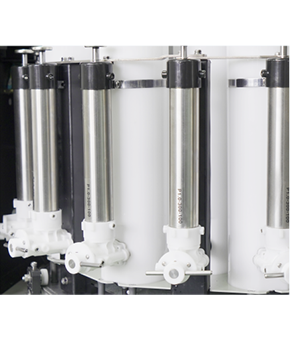

Calibration-free Piston Pump

Piston Rod Detection

Warning when the piston is not pushed down.

Parameters

Single Pump Standard Efficiency	200ml/min*It depends on the product property
Minimum Shot	1/384Y(0.077ml)*It depends on the product property
Pump Capacity	60ml
Stirring Speed	20rpm
Canister Size	1.8L / 2.3L POM 2.3L / 3.8L Stainless Steel ( Optional )
No. of Canisters	Up to 16

Max Can Size ( D X H )	320X600mm
Machine Dimension ( W X D X H )	707X848X1300mm
Packing Dimension ( W X D X H )	830X990X1500mm
Loading Quantity	14 Pieces/20GP
Net Weight	130kg
Gross Weight	155kg
Rated Power	100W
Power Supply	220V/110V 50Hz/60Hz

Download Related Documents

A2-100% Automatic Dispenser

Brochure

It Goes Well With

Automatic Shaker

GH360

Automatic Gyroscopic Mixer
