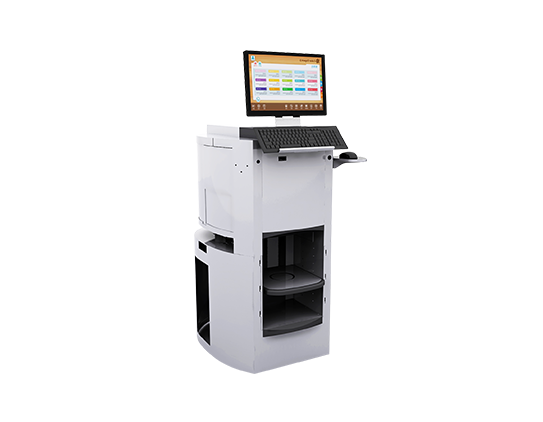

A1

Automatic Dispenser

Smaller Investment
Purge-free

Send Inquiry

Features

parameters

Documents Download

It goes well with

inquiry

Features

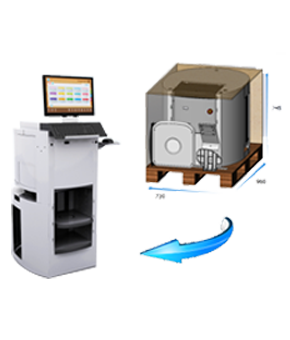

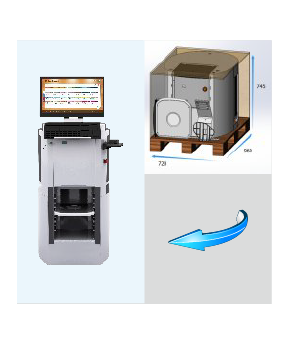

Variable Structure

Simple Refitting Design, Cost -effective, 20GP contains 48 units, 40GP contains 102 units

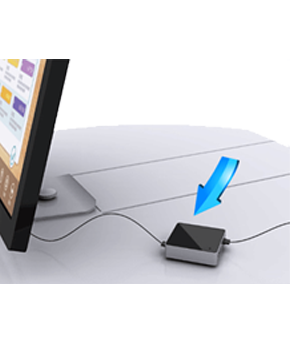

Box/Table Tinting

PC cost saving;pre-installed software,shorter installation time

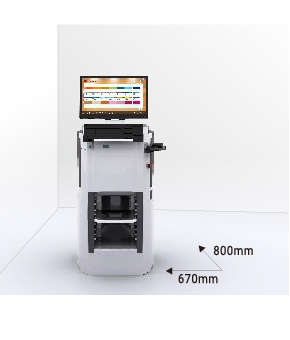

Effective Space Saving

Footprint only 0.54㎡

Suitable for Z-VOC Colorant

100% recirculation technology. Timed recirculation makes the colorant noncondensing and prevents the nozzle from dryness and blockage & colorant from deterioration..

Parameters

Minimum Shot	A1:1/384Y(0.077ml) A1-HB:1/3000Y(0.01ml)*It depends on the product property
Single Pump Standard Efficiency	200ml/min*It depends on the product property
Pump Capacity	A1: 60ml A1-HB: 50ml
Stirring Speed	20rpm
Canister Volume	4x2.3L+12x1.35L 16x1.35L(Optional)
No. of Canisters	Up to 16

Can Size (DxH)	320x420mm(Max.) 80x100mm(Min.)
Machine Size (WxDxH)	670X800X1215mm
Package Size (WxDxH)	990x765x770mm
Net Weight	105kg
Gross Weight	130kg
Rated Power	100W
Power Supply	220V/110V 50Hz/60Hz

Download Related Documents

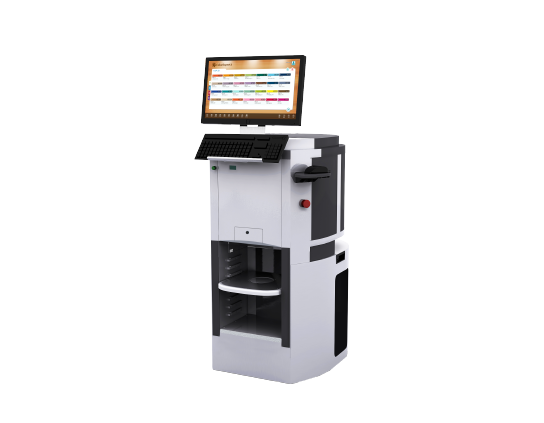

A1 Automatic Dispenser

Brochure

It Goes Well With

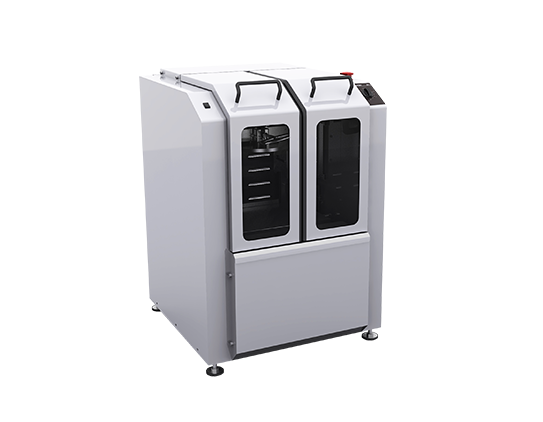

Manual Clamping Shaker

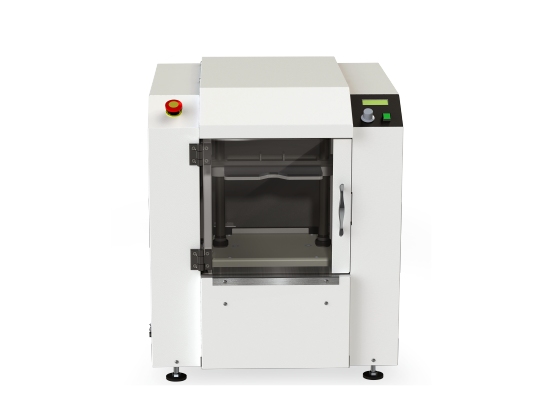

Automatic Shaker

GH360

Automatic Gyroscopic Mixer
