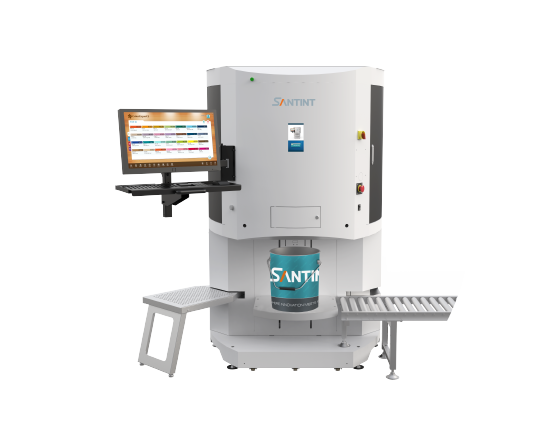

A9-BI

Automatic Dispenser

Efficiency up to 2.3L/min
Accuracy up to 1/2000Y

Send Inquiry

Features

parameters

Documents Download

It goes well with

inquiry

Features

High Speed Dispensing

Pump speed up to 2.3L/min,shorten customer's waiting time.

Large Storage Capacity

Equip with 25L and 10L canisters,reduce refilling times and increase productivity.

High Accuracy

Accuracy up to 1/2000Y(0.015ml),high repeatability ensures high quality.

Suitable for Z-VOC Colorant

100% recirculation technology.Timed recirculation makes the colorant noncondensing and prevents the nozzle from dryness and blockage & colorant from deterioration.

Parameters

Minimum Shot	1/2000Y(0.015ml)*It depends on the product property
Single Pump Standard Efficiency	2.3L/min *It depends on the product property
Canister Configuration	4x25L+12x10L
Dispensing Type	Sequential Dispensing
Pump Type	Bi-directional Piston Pump

Machine Size (width x depth x height)	1100x1270x1778mm
Package Size (width x depth x height)	1200x1400x1975mm
Net Weight	600kg
Gross Weight	720kg
Rated Power	450W
Power Supply	220V/110V 50Hz/60Hz

Download Related Documents

A9-BI Automatic Dispenser

Brochure
