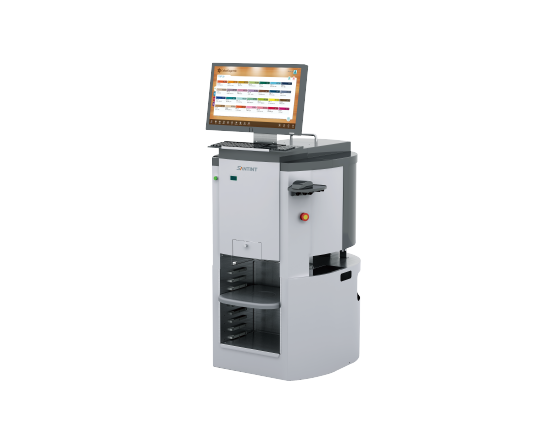

A1-HN

Automatic Dispenser
Enhanced Efficiency *
High Accuracy, 1/2000Y Minimum Shot
Purge-free, 100% Recirculation
*Compared with A1
Features
parameters
Documents Download
It goes well with
inquiry
Features
01
Enhanced Efficiency
Faster and quieter rotation,20-25% improvement in overall efficiency compared with A1
02
High Accuracy
1/2000Y(0.015ml) Minimum shot, suitable for sample paint dispensing
03

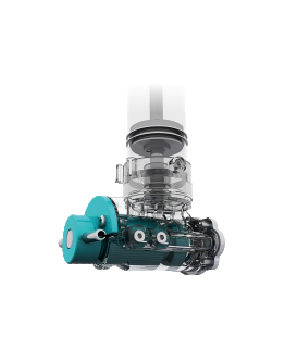

New Integrated Canister-pump Design

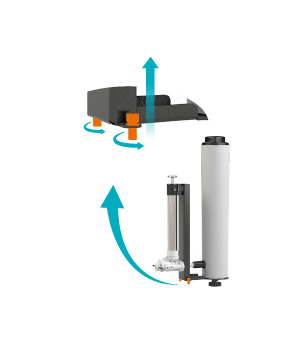

Easy disassembly and maintenance-friendly
04

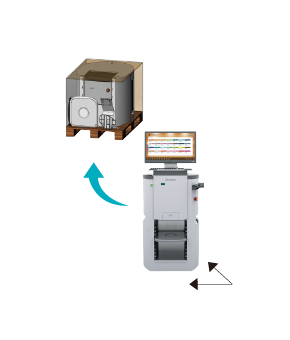

Effective Space Saving Footprint only 0.54m²;Simple Refitting Design Cost-Effective



Parameters
Minimum shot 1/2000Y(0.015ml)*It depends on the product property
Single Pump Standard Flow Rate 600 ml/min
Single Pump Standard Efficiency 200 ml/min
Pump Capacity 60ml
Stirring Speed 20rpm
Canister Volume 16x1.35L, 12x1.35L+4x2.3L
Canister Number Up to 16
Turntable Type Bi-directional
Can size (diameter x height) 320×450mm(Max.) 80×100mm(Min.)
Machine size (width x depth x height) 670x840x1120mm
Package size (width x depth x height) 700x940x760mm
Net Weight 90kg
Gross Weight 110kg
Rated Power 100W
Power Supply 220V/110V 50Hz/60Hz
