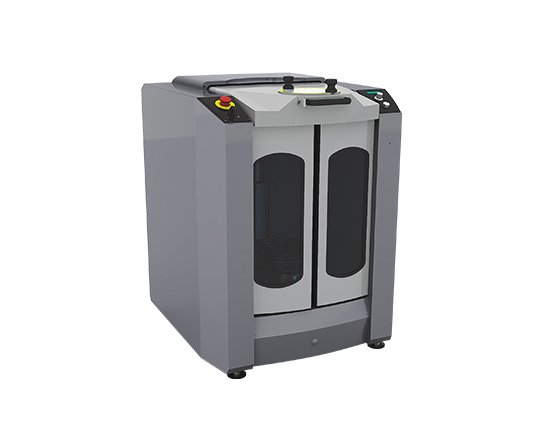

G36H

Manual Clamping Gyroscopic Mixer

Easy Clamping: Innovative clamping design
Clamping Detection: malfunction proof
Automatic Repositioning
Easy Loading: Tri-direction door and extratable loading plate

Send Inquiry

Features

parameters

Documents Download

It goes well with

inquiry

Features

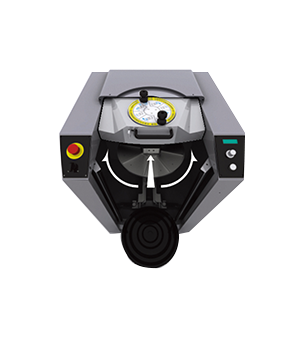

Easy Clamping

Innovative clamping design.

Clamping Detection

Malfunction proof.

Automatic Repositioning

Easy Loading

Tri-direction door and extractable loading plate.

Parameters

Mixing mode	Gyroscopic
Mixing time	30-900s,In 30s
Max mixing weight	36Kg
Mixing speed	125/150/200 rpm
Mixing range	Can size 1-20L Diameter 50-360mm Height 90-380mm
Machine Dimension(W X D X H)	780×850×1050mm

Packing Dimension(W X D X H)	930×830×1175mm 24 Pieces/20"Container
Net Weight	230Kg
Gross Weight	255Kg
Power Supply	220V/110V 50Hz/60Hz
Power	750W

Download Related Documents

G36H Manual Clamping Gyroscopic Mixer

Brochure

It Goes Well With

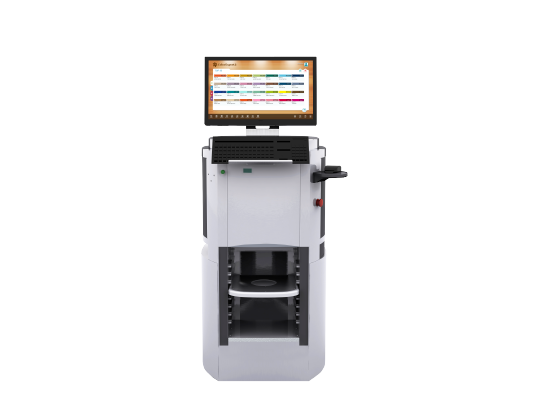

Automatic Dispenser

A4-INK

Automatic Dispenser
