Your current location : Home > Products > Decorative Paint Equipment > Mixer > Gyroscopic Mixer
/d/pic/products/g360m.png
/d/pic/products/g36h-1.png
/d/pic/products/g360m.png
/d/pic/products/g36h-1.png

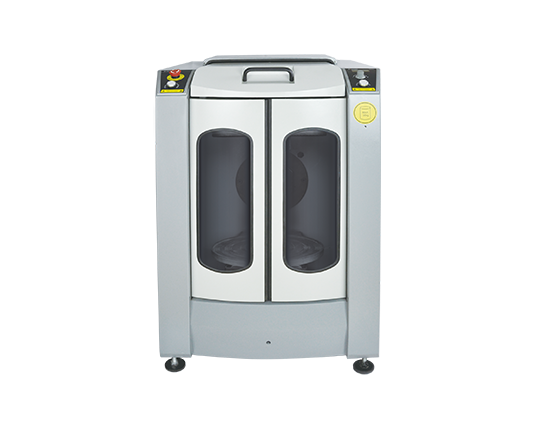

G360M

Automatic Gyroscopic Mixer
Easy Loading
Easy Operation
Send Inquiry
Features
parameters
Documents Download
It goes well with
inquiry
Features
01
Automatic Pressure Detection System


02

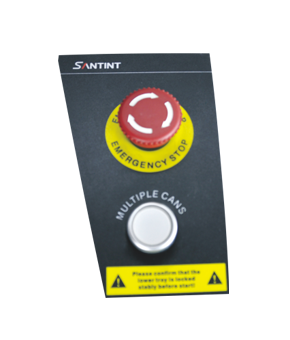

Multi-cans Button
The mixing pressure and speed adjusted automatically.

03

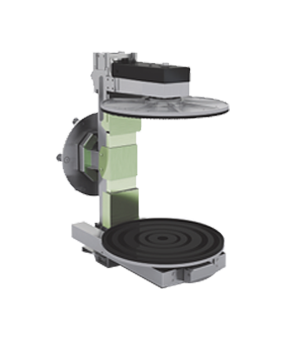

Easy Loading
Tri-direction door and extractable loading plate, suitable for roll conveyor.

04
Guide Screw Protection



Parameters
Mixing Mode Gyroscopic
Mixing Time 30-900s，In 30s
Max Mixing Weight 36kg
Mixing Speed 150/200rpm
Mixing Range Can Size 1-20L Diameter 50-360mm
Height 70-400mm
Machine Dimension(W X D X H) 780×850×1050mm
Packing Dimension(W X D X H) 930×830×1175mm
24 Pieces/20GP
Net Weight 220kg
Gross Weight 245kg
Power Supply 220V/110V 50Hz/60Hz
Rated Power 750W
Download Related Documents
G360M Automatic Gyroscopic Mixer
Brochure
