Your current location : Home > Products > Decorative Paint Equipment > Mixer > Gyroscopic Mixer
/d/pic/products/gn650-2.png
/d/pic/products/gn650-1.png
/d/pic/products/gn650-2.png
/d/pic/products/gn650-1.png

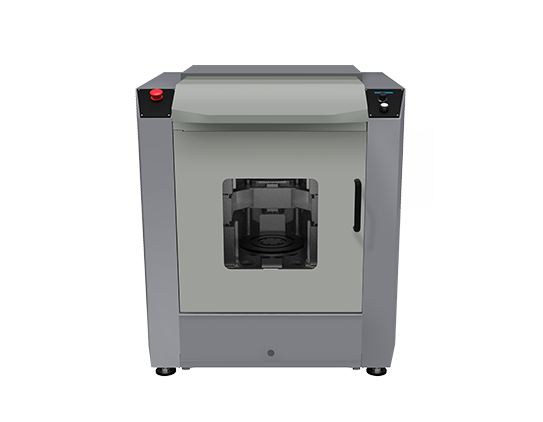

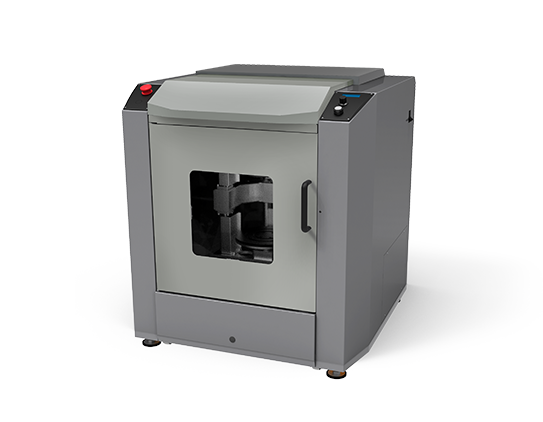

GN650

High Viscosity Mixer
Suitable for Paste Ink Mixing
Viscosity Range:0-500pa·s
Send Inquiry
Features
parameters
Documents Download
It goes well with
inquiry
Features
01
Innovation Technology
Adopt certain speed to achieve rapid mixing of paste,free from shoveling bottom and wall,Break through mixing way of traditional paste ink

02
In-can Mixing
Add the base ink in the ink tank according to formula ratio,Seal the ink tank, to rapidly mix spot color ink.

03
High Efficiency and Environment-friendly
4 min mixing for 1 kg spot color ink,7 min mixing for 5 kg spot color ink,In-can mixing, to avoid effluent from cleaning mixer.

04
Save Labor
Free from the labor, reduce labor intensity



Parameters
Can Height 60-230mm
Max Can Diameter 200mm
Max Mixing Weight 7kg (5L Can)
Mixing speed 400/600rpm
Mixing time Customizable
Machine Dimension (DXWXH) 845x880x980mm
Ratio of revolution to rotation 1:1.6
Clamping Way Automatic Clamping
Lead screw guide rail protection Have
Power Supply 220v 50Hz/110v 60Hz
Motor Power 2.2kW
Download Related Documents
GN650 High Viscosity Mixer
Brochure
It Goes Well With

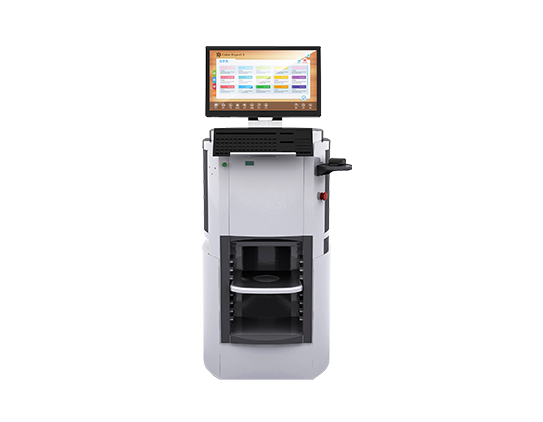

Automatic Dispenser
A1
Automatic Dispenser

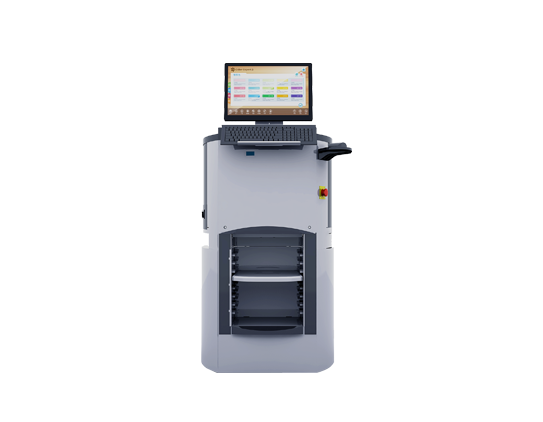

A3 Automatic Dispenser
A3
Automatic Dispenser
Automatic Dispenser

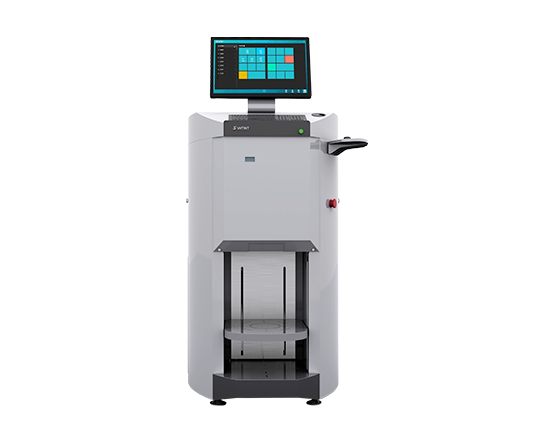

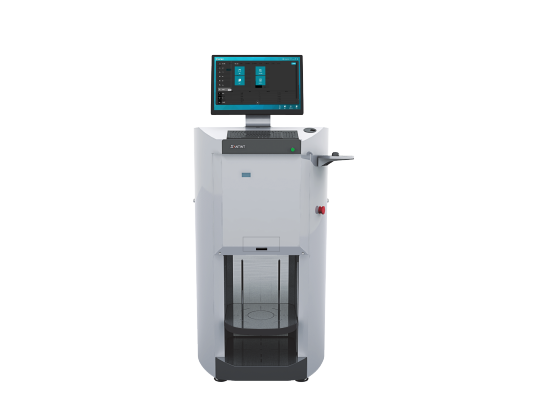

A4-INK
Automatic Dispenser
