AC10

Automatic Dispenser

Integrated dispenser, computer desk, paint mixing table, and storage cabinet
A maximum of 10 toners can be dispensed at a time

Features

parameters

Documents Download

It goes well with

inquiry

Features

High Accuracy

Minimum Shot: 0.015g 100% recirculation technology + intelligent cleaning, ensure stable accuracy

Smart Foolproof

With code scanners, it can accurately identify the dispensing units, effectively avoiding human errors

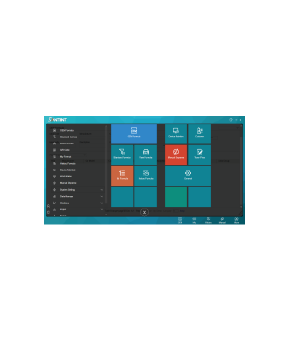

Intelligent Management

Intelligent management of inventory management, sales statistics, and formula management, etc.

Small Figure, Great Power

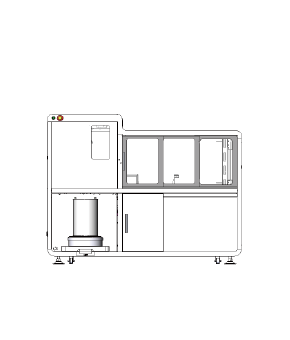

Integrated body, free assembly, easy to enter the field; Integrated dispenser, computer desk, paint mixing table, and storage cabinet

Parameters

Pump Type	Piston Pump
Single Pump Standard Efficiency	200g/min *It depends on the material properties
Minimum Shot	0.015g *It depends on the material properties
No. of Canister	Customizable(≤999 units）
Canister Volume	4.3L/1.35L/0.7L
Toner Type	Compatible with both water-based and solvent-based materials

Dispenser Dimension(WDH) Without Base	1300×700×1000mm
Packing Dimension(WDH) Without Base	1400×800×1250mm
Dispenser Dimension(WDH) With Base	1300×700×1250mm
Packing Dimension(WDH) With Base	1400×800×1300mm
Net Weight Without Base	190kg
Gross Weight Without Base	230kg
Net Weight With Base	230kg
Gross Weight With Base	270kg
Power Supply	220V/110V, 50Hz/60Hz
Rated Power	165W
