AC200

Automatic Dispenser

High Accuracy & High Efficiency
Modular, Convenient Maintain, and Easy to Enter the Site

Features

parameters

Documents Download

It goes well with

inquiry

Features

01

High Accuracy

Minimum Shot: 0.015g,100% recirculation technology + intelligent cleaning, ensure stable accuracy

02

High Efficiency

The robotic arm and turntable cooperate exquisitely, connect smoothly and precisely, greatly improving the working efficiency

03

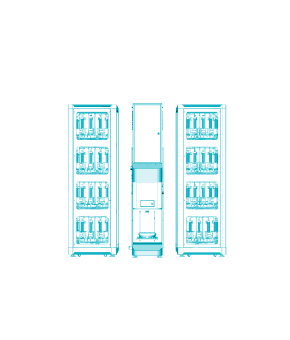

Modular Design, Less Footprint

3-module system, max. 0.67m width per module，Fits narrow spaces; Total footprint: 1.35㎡, Space-Saving

04

Convenient Refilling

When refilling toner, the robotic arm automatically sends out the designated pump unit and returns it to its original position after refilling

Parameters

Pump Type	Piston Pump
Single Pump Standard Efficiency	200g/min *It depends on the material properties
Minimum Shot	0.015g*It depends on the material properties
Toner Type	Compatible with both water-based and solvent-based materials

No. of Dispensing Units	102 (can reach 112 units when all are 0.7L)
Dispensing Unit Capacity	1.2L/0.7L
Dispenser Dimensions(WxDxH)	1749×1266×2100mm
Net Weight	710kg
Power Supply	220V/110V, 50Hz/60Hz
Rated Power	1600W

Download Related Documents

AC200 Automatic Dispenser
